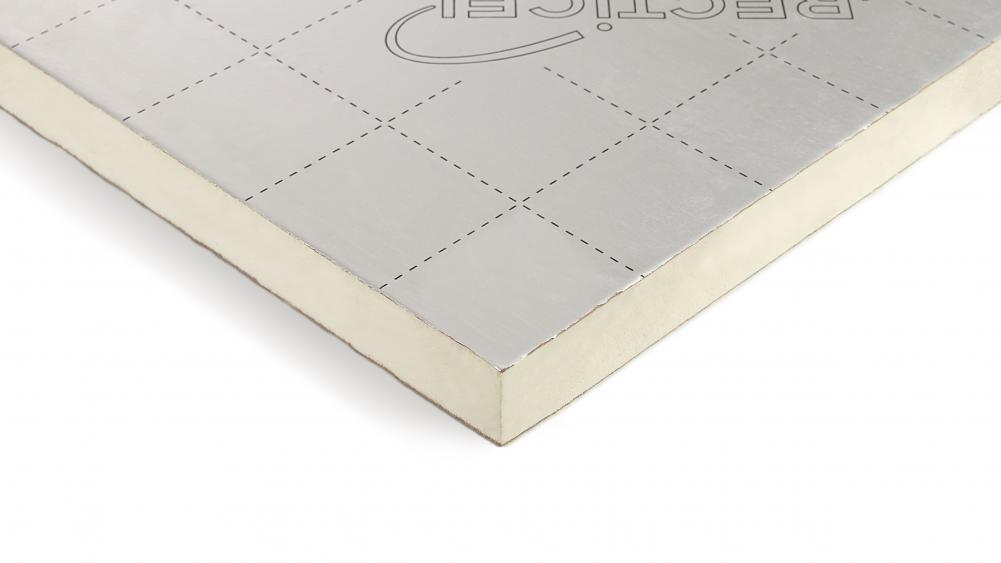

Recticel Insulation Eurowall Cavity panel corner image

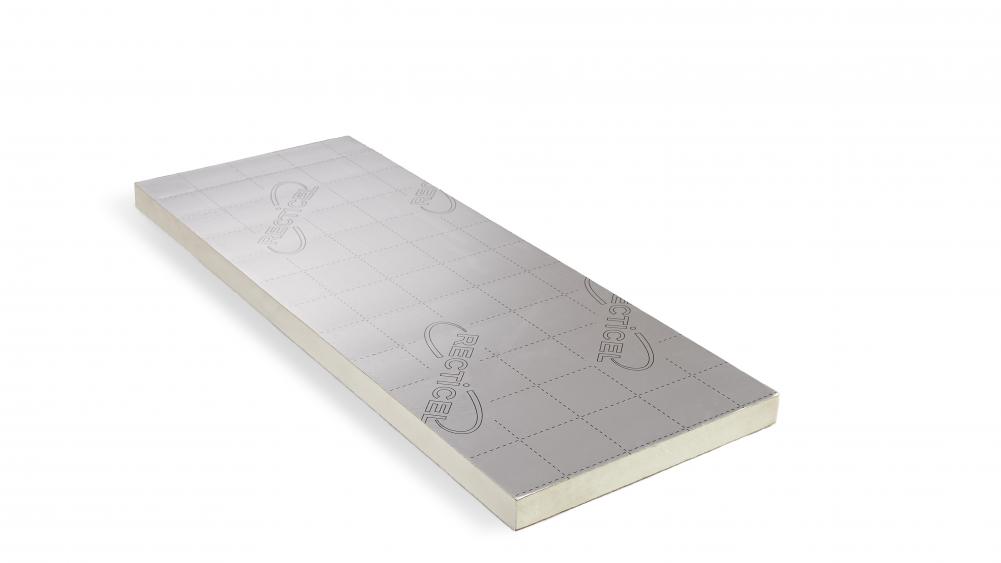

Recticel Insulation Eurowall Cavity panel

Eurowall^® Cavity

Name: Eurowall Cavity
Brand: Recticel Insulation

PIR insulation board for partial fill masonry cavity wall applications.

Eurowall® Cavity is a PIR solution for cavity walls, with precision-cut straight edges to ensure gaps between boards are kept to a minimum. It has a low emissivity facing which delivers improved thermal resistance within the clear cavity.

Our Eurowall® Cavity is CCPI assessed, as noted in the assessment marking below:

Eurowall Cavity CCPI Verification Marking

For test certificates please contact our technical department for details

Key benefits

Good thermal performance: λ = 0.022 W/mK
Limited moisture absorbtion
Durability

Application:
Cavity walls

Calculate U-value

Getting started with Eurothane^® Cavity

Key specifications
Lambda (λ)	0.022 W/mK
Size(s)	1200x450 mm
Fire performance	Euroclass F
Edge finishing	Straight edges

Compare with Eurowall + Technical datasheet Eurowall Cavity

Insulation thickness	Thermal Resistance Value: (m²K/W)
30 mm *	1.35
40 mm	1.80
50 mm	2.25
60 mm	2.70
70 mm	3.15
75 mm	3.40
80 mm	3.60
90 mm *	4.05
100 mm	4.50
* Available on demand (subject to minimum order quantity)

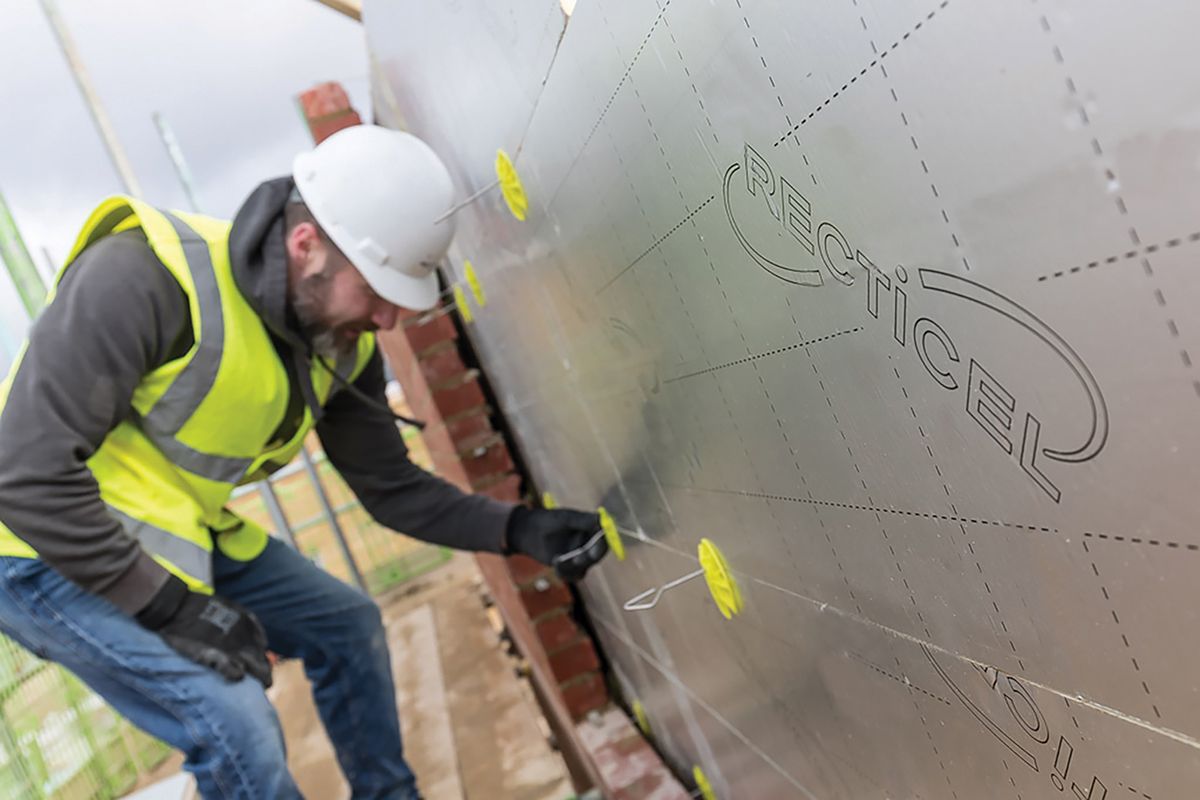

How to insulate cavity walls with Eurowall^® Cavity?

This specialist cavity wall product works at an optimum performance, with precision straight edges to ensure gaps between boards are kept to a minimum. Available in 1200mm x 450mm board sizes, the low emissivity facing of Eurowall® Cavity allows for a much improved thermal resistance within the clear cavity.

Unlike other insulation products, Eurowall® Cavity will not degrade or deteriorate due to moisture and therefore maintains its thermal performance

Download specification guide for cavity wall application
