Eurothane® PL

Insulation and plasterboard in one single, handy board for internal wall insulation and pitched roof applications.

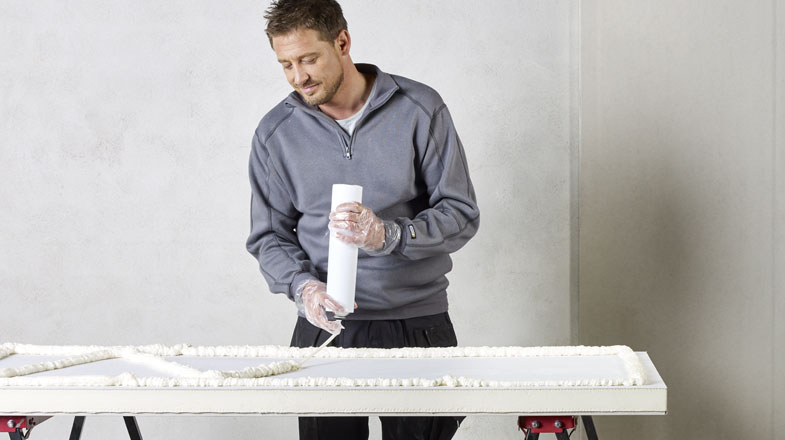

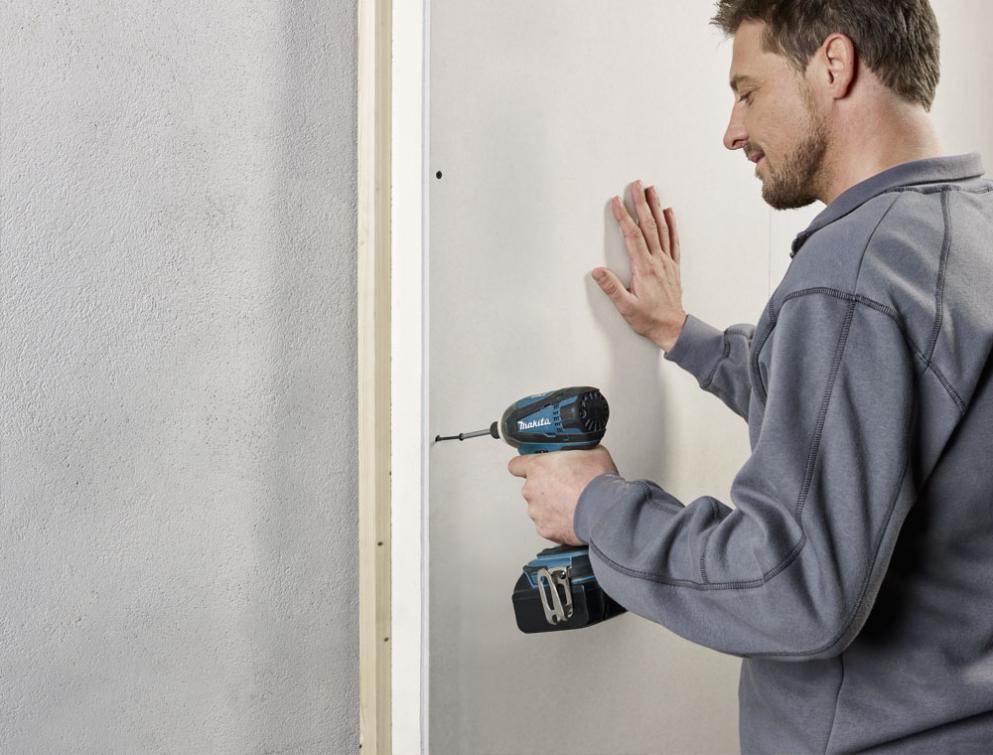

Suitable for mechanical fixing or dot and dab fixing, this insulated board is consistently sized with extremely tight tolerances, ensuring thermal bridging is minimised. Factory bonded, the plasterboard provides optimum board dimensions and optimum adhesion between layers.

Korzyści

  • Good thermal performance: λD = 0,022 W/mK
  • Easy to cut & handle
  • Easy installation
  • Choice of three different dimensions
  • Tapered edge plasterboard (top face long sides)
  • Vapour control layer between plasterboard and insulation.
  • Easy to paint or paper over

Getting started with Eurothane® G

Dane techniczne dla wymiarów: *

Charakterystyka płyty
Lambda (λ) info 0,022 W/mK
Wymiary 1200x600 mm
Wymiary 1200x2600 mm
Wymiary 600x2600 mm
Klasa ogniowa Euroclass B s1 d0 according to EN 13501-1
Wykończenie krawędzi Straight edges (all sides)
Wytrzymałość na ściskanie ≥ 120 kPa
Gęstość objętościowa rdzenia ± 30 kg/m³
Typ Grubości Opór cieplny
Size 1200x2600mm 10mm plasterboard 20 mm 0,90
30 mm 1,35
40 mm 1,80
50 mm 2,25
60 mm 2,70
80 mm 3,60
100 mm 4,50
120 mm * 5,45
Size 600x2600mm 10mm plasterboard 20 mm * 0,90
30 mm * 1,35
40 mm * 1,80
50 mm * 2,25
60 mm * 2,70
80 mm * 3,60
100 mm * 4,50
Size 1200x600mm 12.5mm plasterboard 30 mm * 1,35
82 mm * 3,70
95 mm * 4,30
110 mm * 5,00
*Dostępny na zamówienie
