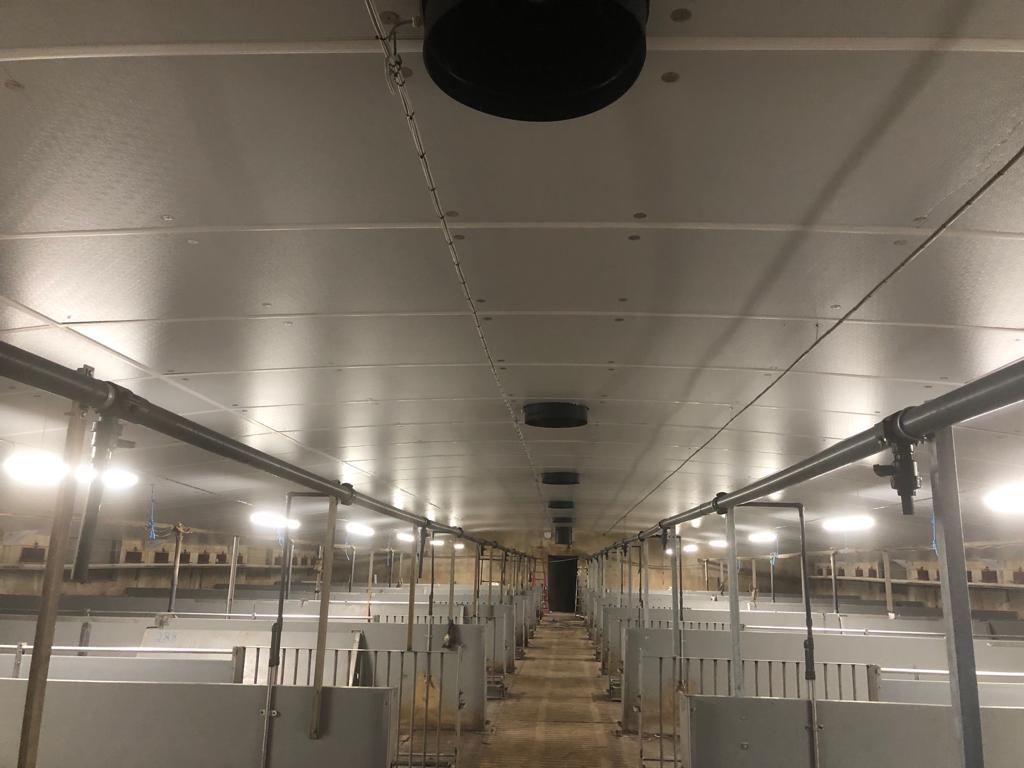

Testimonial of a farmer using Du.Panel X to improve fire safety
2019, Cork, Ireland
Du.Panel® X
Deluxe energy savings & fire protection
Du.Panel® X is a deluxe thermal insulation board for pitched roofs in agricultural buildings. It was specially developed to achieve the optimal balance between two vital characteristics: the highest possible energy savings alongside advanced fire performance. As a result, it offers farmers the ultimate protection for their business.
Key benefits
- Safest solution for areas demanding high fire performance
- Excellent thermal performance with less thickness
- Easy to install single-board solution
Application:
Pitched roof, Ceiling
Getting started with Du.Panel® X
| Key specifications | |
|---|---|
| Lambda (λ) | 0.020 W/mK |
| Size(s) | Width 1200 mm (1227 mm) - custom lengths |
| Fire performance | Euroclass B s2 d0 |
| Edge finishing | Straight edges, quattro or ship lapped |
| Compressive strength | ≥ 150 kPa |
| Density | ± 30 kg/m³ |
| Insulation thickness | RD ( m²K/W) |
|---|---|
| 40 mm | 2.00 |
| 50 mm | 2.50 |
| 60 mm | 3.00 |
| 70 mm | 3.50 |
| 80 mm | 4.00 |
| 90 mm * | 4.50 |
| 100 mm | 5.00 |
| 110 mm * | 5.50 |
| 120 mm | 6.00 |
| * Available on demand (subject to minimum order quantity) | |
How to insulate your agricultural building or storage room with Du.Panel® X?
For optimal results, it is advised to install the insulation boards underneath the purlins. This creates a level surface that is beneficial for optimal ventilation and deters birds from nesting underneath the roof.
The Recticel profiles delivered with the boards, allow you to create a waterproof and airtight connection of the insulation boards.
Mounting
It is advisable to mount the insulation boards by means of 3 high-quality fixings per purlin, i.e. at 20 cm from the edges and in the centre of the boards. An absolute minimum of 2 fixings per purlin can be allowed in some situations depending on the loads the boards will experience (e.g. when no high under- and overpressure is exercised on the boards due to ventilation systems).
In that case, it is recommended to place the fixings at about 25 cm from the longitudinal edges. A combination of both is of course possible when 3 fixings are alternated with 2 fixations.
Always up-to-date with Du.Panel® X
Download our latest technical product information or other relevant documents on Du.Panel® X
Can’t find what you are looking for?
Improve pig housing with high performance insulation
Published on 11 November 2020
Recticel Insulation introduces a project support expert line for farmers
Published on 06 April 2020
Matching accessories
Chair profile
Recticel Insulation offers a complete system for your agricultural building with the PVC profiles. The PVC insulation board profiles fix the boards together and are available in different types and sizes.
Petroprofile
Recticel Insulation offers a complete system for your agricultural building with the PVC profiles. The PVC insulation board profiles fix the boards together and are available in different types and sizes.
Profisol H profile
Recticel Insulation offers a complete system for your agricultural building with the PVC profiles. The PVC insulation board profiles fix the boards together and are available in different types and sizes.
Profisol U profile
Recticel Insulation offers a complete system for your agricultural building with the PVC profiles. The PVC insulation board profiles fix the boards together and are available in different types and sizes.
